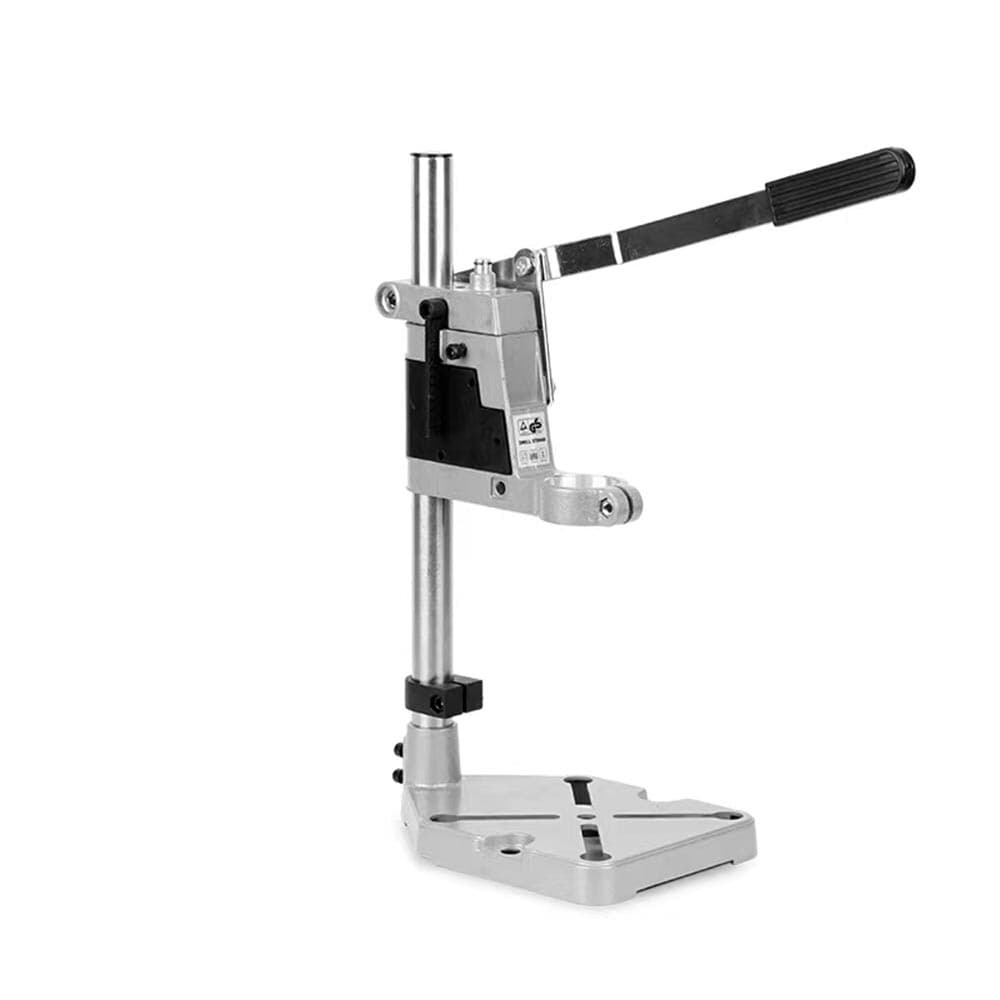

Achieving perfectly straight, precise holes with a handheld drill can be incredibly difficult, often resulting in ruined materials or snapped drill bits. The Premium Electric Drill Stand, available now at Punjabtool.com, is the perfect solution for craftsmen, carpenters, and DIY enthusiasts across Pakistan who need the accuracy of a pillar drill without the massive footprint or expense.
This heavy-duty workstation securely clamps your existing electric drill, transforming it into a stable, fixed drill press. The stand boasts a rigid 400mm vertical column and a solid 150x150mm slotted base that can be bolted directly to your workbench or used with a machine vise. With a maximum drilling depth (stroke) of 60mm and a comfortable leverage handle, you can plunge drill bits into wood, metal, or plastic with complete control and zero wobbling. The adjustable holder collar easily accommodates most standard power drills with a neck diameter between 34mm and 43mm.
Specifications
- Product Type: Benchtop Drill Press Stand
- Total Height: 400mm
- Drilling Depth (Stroke): 0 to 60mm
- Holder Collar Range: Ø 34mm to 43mm (Fits standard drills)
- Base Table Size: 150mm x 150mm
- Maximum Workpiece Height: 200mm
- Material: Heavy-duty aluminum alloy bracket with a solid metal base
- Weight: Approx. 1.5 kg - 2.0 kg (Portable yet stable)
Features
- Drill Press Accuracy: Eliminates the guesswork and wobbling of freehand drilling, ensuring perfectly perpendicular 90-degree holes.
- Adjustable Height: The main clamping head can be raised or lowered along the 400mm column to accommodate different workpiece sizes (up to 200mm tall).
- Universal Fit: The adjustable collar ring securely grips the neck of almost any standard wired or cordless electric drill (34mm-43mm).
- Built-in Depth Scale: The side of the plunge mechanism features a depth gauge, allowing for consistent, repeatable drilling depths (up to 60mm).
- Slotted Base: The sturdy base includes mounting slots, making it easy to attach a drill press vise to hold small materials securely.
Applications
- Woodworking & Carpentry: Essential for drilling precise dowel holes, hinge cups, and perfectly straight pilot holes in furniture making.
- Metalworking: Provides the stability and sustained pressure needed to drill through steel and aluminum plates safely.
- Electronics & Crafts: Perfect for delicate tasks like drilling precise holes into custom PCB boards or crafting jewelry.
